Thermoplastic welding is a versatile manufacturing process that joins compatible thermoplastic materials using heat, pressure, and controlled cooling. This method creates strong, permanent bonds that are often as strong as the material itself. It is widely used to make banners, tarps, inflatables, geomembranes, awnings and medical films, thanks to its ability to produce airtight, waterproof, and structurally sound seams.
Unlike thermoset plastics, thermoplastics soften when heated and re-solidify upon cooling, which is what makes them weldable. The choice of welding technique depends on factors such as material type, thickness, and production requirements, ensuring optimal results for each application.
- 熱可塑性樹脂の溶接では、熱と圧力を利用して、互いに適合する材料を一体化させます。
- 熱可塑性樹脂（熱硬化性樹脂ではない）のみが溶接可能であり、これは再加熱して形状を変えることができるためである。
- 継ぎ目の品質は、温度、圧力、速度、および材料の適合性に大きく左右されます。
- 材料や継ぎ目の種類、生産上の要件によって、適した溶接方法は異なります。
- 溶接は、縫製や接着剤に比べて、より強固で、仕上がりがきれいで、気密性の高い接合部を作り出すことが多い。
- 適切なセットアップと工程管理は、一貫性があり再現性のある結果を得るために不可欠です。
熱可塑性樹脂溶接とは？
Thermoplastic welding is a specialized technique used to join thermoplastic materials by applying controlled heat and pressure. This process softens the plastic surfaces at the joint, allowing the polymer chains to fuse together as they cool and solidify, forming a strong, cohesive bond. Unlike mechanical fastening or adhesives, thermoplastic welding creates a seamless connection that often matches or exceeds the strength of the original material.
This method is widely favored in manufacturing due to its ability to produce durable, airtight, and waterproof joints without introducing foreign substances. Its versatility allows it to accommodate a variety of shapes and sizes, making it suitable for products ranging from banners and tarps to inflatables and medical films.
熱可塑性樹脂の溶接の仕組み
Thermoplastic welding follows a series of controlled steps that ensure a strong and durable bond between compatible materials. The process begins with thorough surface preparation, where materials must be cleaned and properly aligned to guarantee a consistent bond. Special attention is given to the joint area and weld interface to optimize bonding conditions. Next, heat is applied carefully to soften the surfaces without degrading the plastic, allowing the polymer chains to become mobile.
Following heat application, pressure is applied to bring the softened surfaces together at the joint line. This pressure facilitates molecular fusion, where the materials intermingle and form a permanent bond. As the materials cool, the polymer chains solidify, creating a continuous, airtight seam that requires no additional filler material. Precision in temperature, pressure, and timing is critical throughout the process to avoid defects such as weak seams, burn-through, or misalignment. Successful thermoplastic welding depends on matching the process parameters to the specific material and application. Our Thermoplastic Welding 101 guide covers the techniques and materials in more detail.
Key factors for repeatable success include:
- Accurate temperature control to soften without degrading materials
- Consistent dwell time to ensure proper fusion
- Uniform pressure application for seamless bonding
- Reliable machine setup or automation for process stability
- Proper alignment and surface preparation of both the parts
熱可塑性樹脂の溶接方法の種類
Overview of Thermoplastic Welding
For fabrics and films, four welding methods do most of the work: hot air welding, hot wedge welding, RF (radio frequency) welding and impulse welding. Each one heats the material differently, so each suits different materials, seam types and production volumes.
各手法によって異なるのは、温度、圧力、速度といった重要な溶接パラメータや、溶接プロセスや溶接部の品質に影響を与えるその他の要因です。
熱風溶接
Blows heated air between two overlapping layers of material to melt their surfaces, then pressure rollers press them together into a single, airtight seam. No welding rod or filler is used.
特長：汎用性が高く、さまざまな縫い目が可能。
ホットウェッジ溶接
材料の間に加熱された金属製のくさびを挿入し、直接接触加熱を行う。
最適用途：長くてまっすぐな縫い目と高速生産。
高周波（RF）溶接
電気エネルギーを分子の振動に変換し、その振動によってプラスチック内部で熱エネルギーを発生させることで、分子レベルで材料を内部から加熱し、効果的な接合を実現します。
最適用途：PVCおよび強固で均一な接着が必要な素材。
インパルス溶接
Applies heat through electrical resistance for short, controlled bursts, using resistive heating to generate the necessary heat for welding
最適用途：精密加工や薄い素材。
各手法は、以下の点で異なります：
- スピード
- 精密
- 素材の互換性
- 自動化の可能性
- 縫い目の見た目
適切な選択は、あくまで用途によって決まるものであり、どの方法が全体的に「最良」かということではない。
どのような材料が熱可塑性溶接が可能ですか？
| 素材タイプ | 説明 | Notes and Considerations |
|---|---|---|
| PVC（ポリ塩化ビニル） | A widely used thermoplastic known for chemical resistance and toughness. | Commonly welded using high frequency welding; compatible with similar materials for strong bonds. |
| Vinyl-Coated Fabrics | Fabrics coated with vinyl for enhanced durability and weather resistance. | Suitable for various welding techniques; surface treatments may affect bonding. |
| TPU（熱可塑性ポリウレタン） | Flexible, durable plastic used in applications requiring elasticity. | Requires compatible welding methods; testing recommended for complex weld joint geometry. |
| Low Density Polyethylene (LDPE) | A softer, more flexible polyethylene variant with lower melting point | Needs careful temperature control because of its lower melting point; hot air, hot wedge and impulse welders can all seal it. |
| High Density Polyethylene (HDPE) | A harder, more crystalline polyethylene with higher melting point. | Common in industrial applications; matching density and type is essential for optimal weld strength. |
| ポリプロピレン（PP） | A rigid, semicrystalline thermoplastic used in packaging and automotive parts. | Compatible with several welding techniques; material compatibility is key for durable welds. |
熱可塑性樹脂の溶接が一般的に用いられる製品および産業
熱可塑性樹脂の溶接は、工業用繊維や柔軟な素材の用途において広く利用されており、具体的には次のようなものがあります：
- バナーと看板
- Tarps and truck covers
- オーニングとキャノピー

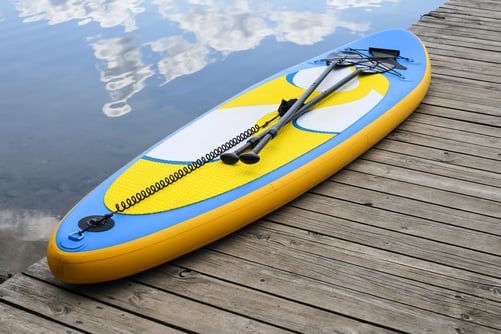

- 浮き輪やラフト
- プールカバー
- フレキシブルダクト
- ジオメンブレン
- ろ過バッグ
これらの製品には、多くの場合、以下のものが必要です：
- 防水または気密の縫い目
- 高い耐久性
- すっきりとした仕上がり
製品の要件は様々です。外観を重視するものもあれば、強度や耐環境性を重視するものもあります。
自動化は、大量生産や、一貫性が極めて重要となる場面において、特に大きな価値を発揮します。
熱可塑性樹脂の溶接が、縫製、接着、および機械的締結に比べて持つ利点
従来の接合方法と比較して、熱可塑性樹脂の溶接にはいくつかの利点があります：
- 針穴のない、より丈夫な縫い目
- 防水・気密性能
- 縫い目が目立たず、すっきりとした仕上がり
- 生産速度の向上
- 消耗品の削減（糸、接着剤、テープが不要）
- 自動化システムにおける一貫性の向上
Automated welding is a cost-efficient solution for many applications, providing faster processing, reduced labor, and lower manufacturing costs compared to adhesives and mechanical fasteners.
溶接を行うことで、次のような一般的な問題を解消できます：
- 接着剤の硬化時間
- 接着剤のばらつき
- 糸切れ
Additionally, a welded seam adds no thread, glue or metal fasteners to the product.
しかし、材料の種類や製品の設計によっては、他の方法にも依然として価値がある。
熱可塑性樹脂の溶接における制約と課題
熱可塑性樹脂の溶接は極めて効果的ですが、いくつかの制約があります：
- すべての材料が溶接できるわけではありません
- 設定が不適切だと、継ぎ目が弱くなる可能性があります
- 汚染は接着品質に影響を与える
- 材料の厚さが不均一だと、仕上がりにばらつきが生じる可能性があります
- 操作ミスは結果に影響を与える可能性があります
ロット間の材料のばらつきも、性能に影響を与える可能性があります。
こうした課題の多くは、以下の方法によって対処することができます：
- 適切な機器の選定
- プロセスの最適化
- テストと試作
強固で均一な熱可塑性樹脂の溶接を実現するには？
| ファクター | 説明 | Importance for Weld Quality |
|---|---|---|
| 素材適合性 | Ensuring both parts are made from compatible thermoplastic materials for effective fusion bonding | Critical for strong, durable welds |
| Proper Heat Input | Applying the correct temperature to soften plastics without degrading them | Prevents weak seams or burn-through |
| Consistent Pressure | Maintaining uniform pressure during welding to bond softened surfaces | Ensures molecular intermingling and seam integrity |
| Correct Seam Overlap | Overlapping joint surfaces adequately to maximize bonding area | Enhances mechanical strength and leak resistance |
| Controlled Speed and Cooling | Managing welding speed and cooling rate to avoid defects | Reduces distortion and promotes uniform weld solidification |
| Weld Area and Interface Prep | Preparing and designing the weld interface and area for optimal joint strength | Key to achieving reliable, high-quality bond |
| Signs of a Strong Weld | Uniform seam appearance, high peel strength, leak resistance, minimal distortion | Indicates successful welding process |
| Common Defects | Burn-through, weak fusion, wrinkling, misalignment, inconsistent seam width | Must be monitored and controlled to maintain quality |
| Quality Control Methods | Visual inspection, peel testing, ongoing process monitoring | Essential for consistent, repeatable production success |
溶接の安全と品質管理
Ensuring safety and maintaining rigorous quality control are fundamental to successful thermoplastic welding operations. Working with thermoplastic materials involves exposure to heat, fumes, and moving machinery, making it essential to implement comprehensive safety measures. Operators should always wear appropriate personal protective equipment, such as heat-resistant gloves, safety glasses, and face masks, to protect against burns, airborne particles, and fumes generated during the welding process. Additionally, maintaining a well-ventilated workspace helps minimize the risk of inhaling potentially harmful vapors, especially when welding PVC or polyethylene.
Quality control is equally critical for achieving high quality welds. The weld joint design, material properties, and welding parameters—such as temperature, pressure, and dwell time—must be carefully optimized for each application. For example, hot air and hot wedge welding need precise control of temperature, speed and roller pressure to avoid underheating, which leads to weak bonds, or overheating, which can burn through or distort the material.
溶接設備の定期的なメンテナンスは、安定した性能を維持し、予期せぬ稼働停止を防ぐために不可欠です。適切に調整された機械は、適切な温度と圧力の設定を維持するのに役立ち、これは溶接部の強度や外観に直接影響します。オペレーターのトレーニングも重要な要素です。熟練した技術者は、溶接パラメータの調整、潜在的な欠陥の認識、および材料特性の変動への対応をより的確に行うことができます。
安全性を最優先し、厳格な品質管理措置を講じることで、製造業者は、厳しい業界基準を満たす溶接部を安定して生産し、欠陥のリスクを低減させ、製品と設備の両方の寿命を延ばすことができます。
用途に適した熱可塑性樹脂の溶接方法の選び方
Choosing the right thermoplastic welding method is crucial to achieving strong, durable, and efficient bonds tailored to your specific application. Factors such as material type, thickness, seam strength requirements, and production volume all influence the optimal welding technique. Understanding these variables helps ensure the selected method meets both performance and aesthetic needs. This guide will walk you through the key considerations for making an informed decision on the best welding process for your project.
Step 1 – Material Type and Thickness
The choice of welding method starts with understanding the material type and thickness. Different thermoplastic materials respond uniquely to heat and pressure, so compatibility is crucial. Thickness affects how heat penetrates and bonds the parts, influencing welding parameters and technique selection. Proper evaluation ensures a strong, durable weld suited to the specific application.
Step 2 – Seam Strength Requirements
Determining the required strength of the seam guides the welding process choice. Some applications demand high structural integrity, while others prioritize aesthetic or environmental resistance. Matching the welding technique to these needs ensures a durable and reliable bond. This consideration helps select the most appropriate method for the intended use.
Step 3 – Product Shape and Size
The geometry of the product significantly influences the choice of welding method. Complex joint shapes or large components may require specialized techniques to ensure consistent, high-quality results. Proper consideration of the product's shape helps prevent issues like misalignment or uneven heating during welding.
Step 4 – Appearance Expectations
The visual quality of the weld seam is important, especially for consumer-facing products. Some welding methods produce cleaner, smoother finishes without visible marks or distortions. Balancing appearance with performance helps select the most suitable technique.
Step 5 – Production Volume
Production scale affects the choice between manual and automated welding, with high-volume manufacturing favoring automation for speed and consistency. Environmental factors like waterproofing and chemical resistance also influence method selection. Ultimately, the best welding method depends on evaluating the entire process fit rather than just machine cost.
熱可塑性樹脂用溶接機：選ぶ際のポイント
Key Features to Consider in Thermoplastic Welding Equipment
When selecting equipment, key features include precise temperature control, adjustable speed settings, consistent seam quality, level of automation, ease of use for operators, and maintenance and uptime reliability. These factors ensure the welding process is efficient, repeatable, and produces high-quality bonds.
Advanced Capabilities of Modern Welding Systems
Advanced systems may offer programmable settings, hands-free material feeding, integrated cutting or finishing, and repeatable production controls. Such features enhance productivity and accuracy, especially in high-volume manufacturing environments.
Specialized Equipment for Specific Welding Techniques
Each method needs its own equipment: hot air welders for curves, corners and detail work; hot wedge welders for long, straight seams; RF welders for PVC and polyurethane films that need precise, uniform bonds; and impulse welders for thin films and precise seals.
Aligning Equipment with Product Requirements and Workflow
Choosing the right machine involves aligning its capabilities with both your product requirements and workflow. Proper equipment selection supports optimal welding performance, reduces downtime, and meets production goals effectively.
Miller Weldmaster 熱可塑性樹脂の溶接用途をどのようにMiller Weldmaster
熱風システム
Miller Weldmaster offers hot air welding machines that utilize heated air to soften the surfaces of thermoplastic materials. This method allows for precise control over temperature and airflow, enabling effective bonding of various plastics. Hot air systems are versatile and suitable for welding a wide range of materials, making them ideal for applications requiring strong and consistent seams.
ホットウェッジシステム
Hot wedge systems employ a heated metal wedge to generate heat through direct contact with the materials being joined. This technique is particularly effective for producing long, straight seams at high speeds. Miller Weldmaster's hot wedge welders ensure uniform heat distribution and pressure, resulting in durable and reliable welds for industrial fabrics and similar materials.
Radio Frequency Equipment
Radio frequency (RF) welding machines from Miller Weldmaster use high-frequency electromagnetic waves to heat thermoplastic materials internally. This process creates strong, uniform bonds without the need for external heat sources. RF welding is especially suitable for materials like PVC and polyurethane, providing airtight and waterproof seams for applications such as banners and tarps.
Impulse Welding Solutions
Impulse welding involves applying heat through electrical resistance in short, controlled bursts. Miller Weldmaster's impulse welders offer precision and efficiency, making them well-suited for thinner materials and applications requiring exact temperature control. This method produces clean, strong welds with minimal thermal distortion.
Supported Manufacturing Applications
These thermoplastic welding technologies support manufacturers producing a variety of products, including banners and signage, tarps and covers, inflatables, ducting and filtration systems, geomembranes, awnings, and industrial fabrics. Miller Weldmaster's equipment is designed to meet the diverse needs of these industries, ensuring high-quality, durable seams.
Key Advantages of Miller Weldmaster Solutions
Miller Weldmaster's thermoplastic welding equipment offers several key advantages, such as increased production efficiency, reduced labor requirements, and stronger, more consistent seams. Their flexible solutions cater to multiple applications, and they provide custom equipment tailored to specialized manufacturing needs.
Commitment to Application Matching
Beyond simply selling machines, Miller Weldmaster focuses on helping manufacturers match the right welding technology to the right application. This approach ensures optimal results, improved product quality, and efficient production processes tailored to specific industry requirements.
結論
Thermoplastic welding joins PVC, TPU, polyethylene, polypropylene and coated fabrics into seams that are airtight, waterproof and often as strong as the material itself. The right method depends on the material, the seam and the production volume: hot air for flexibility, hot wedge for long straight seams, RF for PVC and polyurethane films, and impulse for thin films. Miller Weldmaster helps manufacturers test their material and choose the machine that fits.
